FV PP-R metal reducer with cap nut

System:	FV AQUA
Material:
Standard:	ČSN EN ISO 15874
Details:	Transition fitting from plastic part to metal part of pipeline.

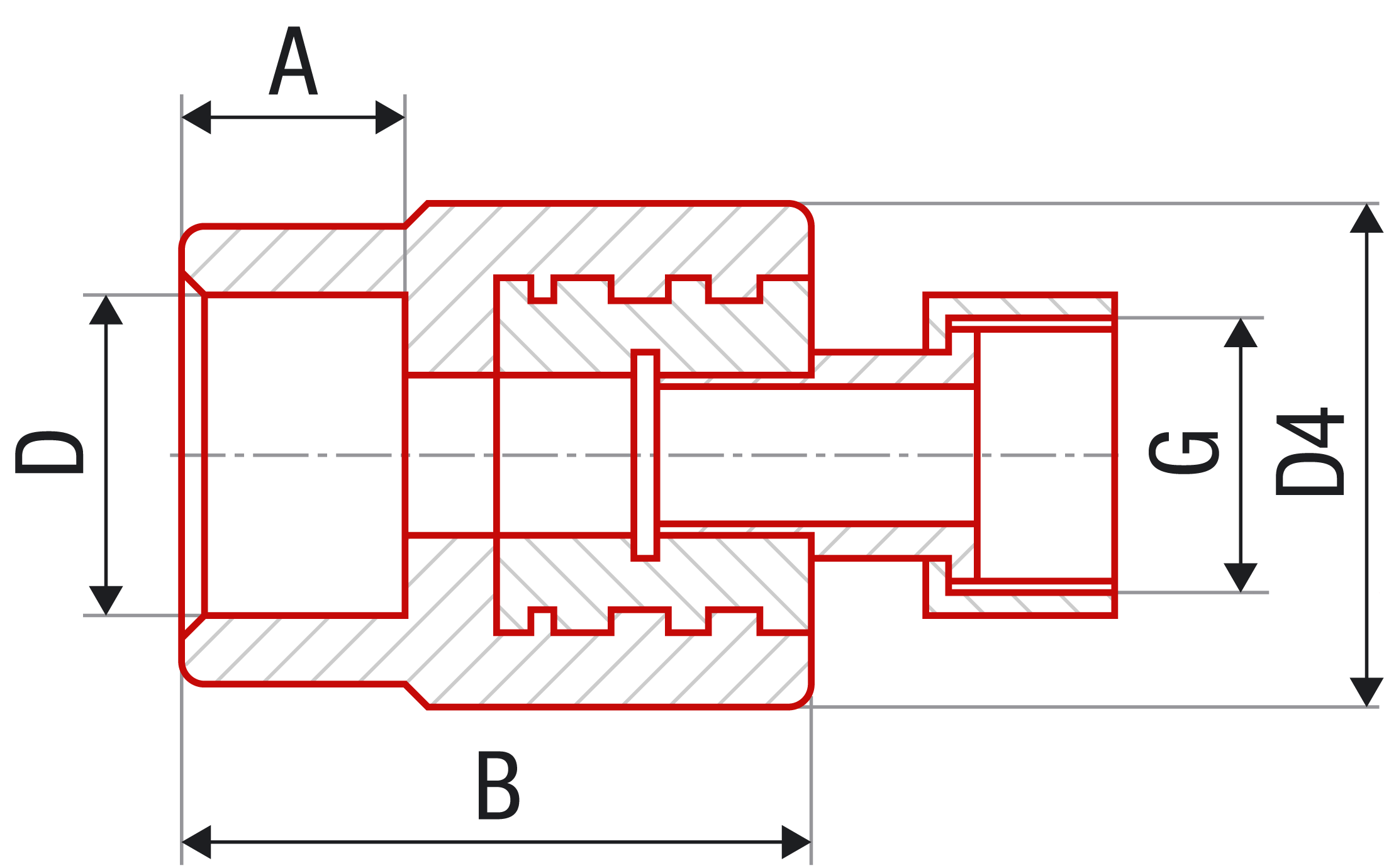

						#	#	D [mm]	D4 [mm]	A [mm]	B [mm]	G
16 × 1/2"	pcs	120	10	0.05	0.05	AA223016012	BA223016012	16	37	13.3	33.6	1/2"
16 × 3/4"	pcs	100	10	0.08	0.06	AA223016034	BA223016034	16	37	13.3	37.0	3/4"
20 × 1"	pcs	50	10	0.23	0.06	AA223020001	BA223020001	20	43	14.5	43.0	1"
20 × 1/2"	pcs	120	10	0.05	0.05	AA223020012	BA223020012	20	37	14.5	33.6	1/2"
20 × 3/4"	pcs	100	10	0.08	0.06	AA223020034	BA223020034	20	37	14.5	37.0	3/4"
25 × 1"	pcs	40	10	0.26	0.07	AA223025001	BA223025001	25	43	16.0	44.0	1"
25 × 3/4"	pcs	100	10	0.26	0.06	AA223025034	BA223025034	25	37	16.0	39.0	3/4"
32 × 5/4"	pcs	25	5	0.36	0.12	AA223032054	BA223032054	32	52	18.1	47.5	5/4"

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Teflon band or special sealing putty containing Teflon. It is suffi cient to apply it on the first two or three threads. Never use classical hemp – after it absorbs wate
