FV PP-R elbow 90° plastic reducing sleeve with cap nut

System:	FV AQUA
Material:
Standard:	ČSN EN ISO 15874
Details:	Transition fitting from plastic part to metal part of pipeline. \|* with a hole for seal.

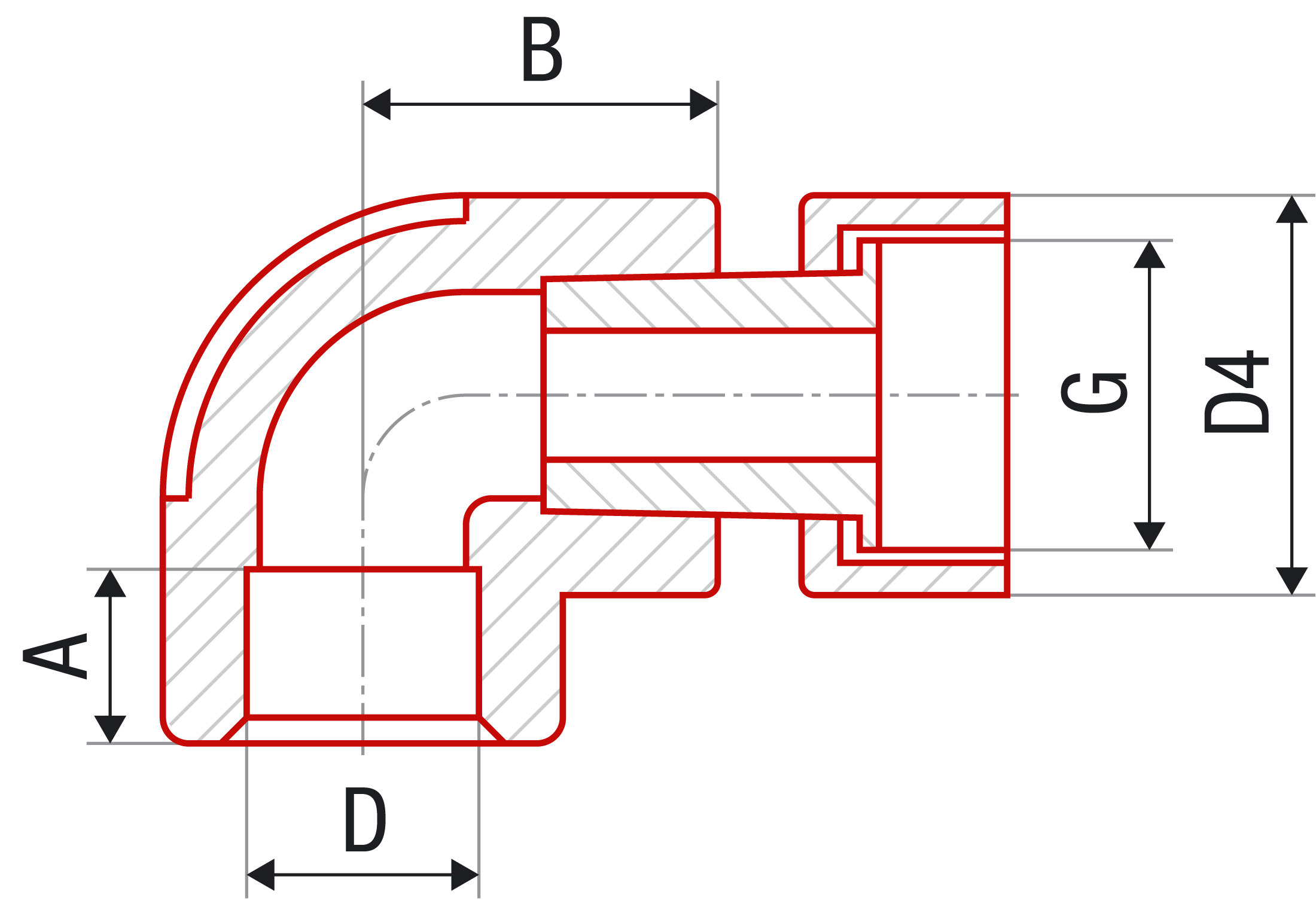

						#	#	D [mm]	D4 [mm]	A [mm]	B [mm]	G
20 × 1/2"	pcs	250	25	0.04	0.02	AA227020012	BA227020012	20	29.0	14.5	29.3	1/2"
20 × 3/4"	pcs	180	20	0.06	0.03	AA227020034	BA227020034	25	30.0	14.5	25.5	3/4"
20 × 3/4"	pcs	180	20	0.06	0.02	AA227020134 ¹⁾	BA227020134 ¹⁾	20	30.0	14.5	25.5	3/4"
25 × 3/4"	pcs	120	10	0.06	0.10	AA227025034	BA227025034	32	36.6	16.0	32.0	3/4"

¹⁾ with a hole for seal

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Tefl on band or special sealing putty containing Tefl on. It is suffi cient to apply it on the fi rst two or three threads. Never use classical hemp – after it absorbs water, the thread may crack due to the inner pressure.
