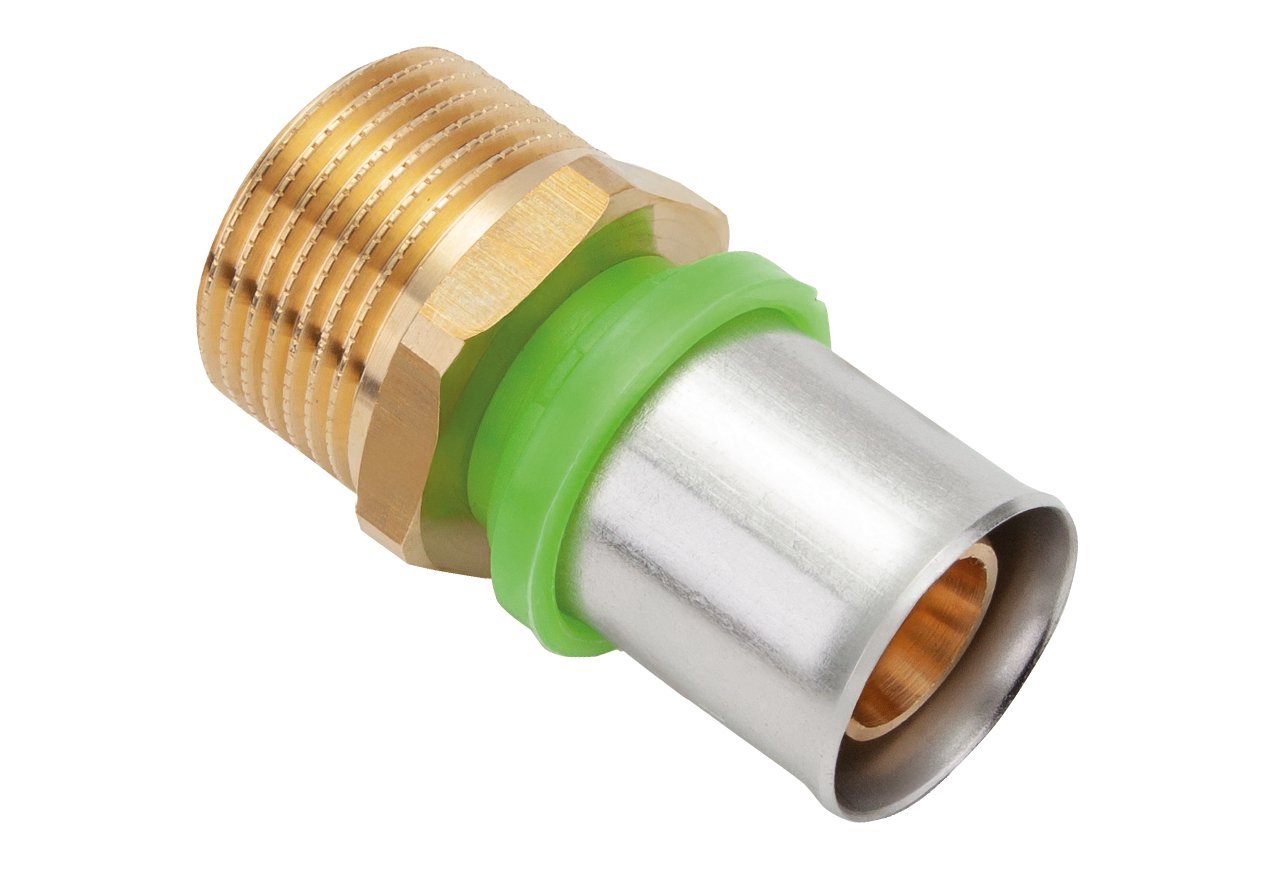

FV M-PRESS reducing sleeve with metal male thread

System:	FV AQUA
Material:	MET
Standard:	EN ISO 21003
Details:	Transition fitting from FV MULTI part to metal part of pipeline.

icon_1icon_2icon_3icon_4icon_5icon_6icon_7icon_8icon_9

Dimension	Unit	Large package	Small package	Weight [kg/pcs]	Catalog number	D [mm]	L [mm]	R [mm]
16 x 2,0 - 3/8"	pcs		10		AA302016038	16	52	3/8"
16 x 2,0 - 1/2"	pcs	390	10	0,0646	AA302016012	16	57	1/2"
16 x 2,0 - 3/4"	pcs		10		AA302016034	16	55	3/4"
18 x 2,0 - 1/2"	pcs	400	10	0,0672	AA302018012	18	57	1/2"
18 x 2,0 - 3/4"	pcs	40	10	0,0880	AA302018034	18	55	3/4"
20 x 2,0 - 1/2"	pcs	200	10	0,0782	AA302020012	20	57	1/2"
20 x 2,0 - 3/4"	pcs	200	10	0,0954	AA302020034	20	57	3/4"
26 x 3,0 - 1/2"	pcs		10		AA302026012	26	59	1/2"
26 x 3,0 - 3/4"	pcs	200	5	0,1316	AA302026034	26	59	3/4"
26 x 3,0 - 1"	pcs	100	5	0,1320	AA302026010	26	62	1"
32 x 3,0 - 1"	pcs	10	5	0,2020	AA302032010	32	64	1"
40 x 3,5 - 1 1/4"	pcs		2		AA302040054	40	73	1 1/4"
50 x 4,0 - 1 1/2"	pcs		2		AA302050064	50	79	1 1/2"
63 x 4,5 - 2"	pcs		2		AA302063020	63	89	2"
