FV PP-RCT FASER OXY HEAT/COOL

System:	FV AQUA
Material:	PP-RCT
Standard:	ČSN EN ISO 15874
Details:	Suitable for heating and cooling distribution systems. For applications 20 °C/2.0 MPa–90 °C/1.0 MPa up to D=63. Pipe with oxygen barrier and 3× lower thermal linear expansion compared to single-layer PP-RCT pipe. All dimensions d20 to d63 in lengths of 3 m.

New

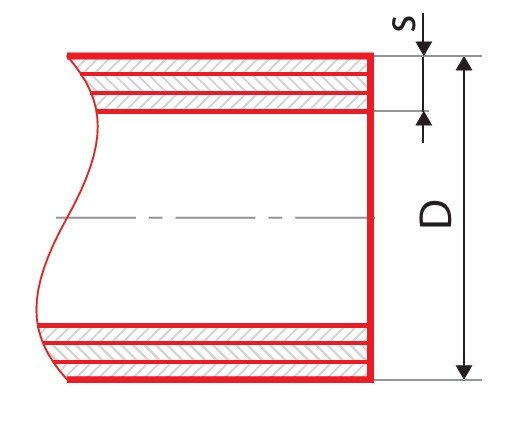

					#	#	D [mm]	s [mm]	SDR (S)	l [m]
20 × 2.8	m	75	0.151	0.44	AA116020003		20	2.8	7.4 (3.2)	3
25 × 3.5	m	45	0.232	0.73	AA116025003		25	3.5	7.4 (3.2)	3
32 × 4.4	m	30	0.340	1.10	AA116032003		32	4.4	7.4 (3.2)	3
40 × 4.5	m	18	0.513	1.83	AA116040003		40	4.5	9 (4)	3
50 × 5.6	m	12	0.746	2.75	AA116050003		50	5.6	9 (4)	3
63 × 7.1	m	9	0.190	4.07	AA116063003		63	7.1	9 (4)	3
75 × 8.4	m	8	1.700	5.50	AA113075004		75	8.4	9 (4)	4
90 × 10.1	m	4	2.400	9.17	AA113090004		90	10.1	9 (4)	4
110 × 12.3	m	4	3.400	10.31	AA113110004		110	12.3	9 (4)	4
125 × 14.0	m	4	4.480	12.27		BA113125004	125	14.0	9 (4)	4
160 × 14.6	m	4	6.775	20.10		BA113160004	160	14.6	11 (5)	4
200 × 18.2	m	4	10.640	31.40		BA113200004	200	18.2	11 (5)	4

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Is it possible to use PPR pipes to install the heating system? Yes, it is – and with high reliability. The pressure range 20 is suffi cient for central heating distribution of hot-water heating (not steam heating). What is better for heat distribution though is the STABI pipes reinforced by aluminium foil.
