FV PP-RCT crossover

System:	FV AQUA
Material:	PP-RCT
Standard:	ČSN EN ISO 15874
Details:	It enables the crossing of individual water distribution and heating routes. It is most often used in distributions in the floor or when avoiding a riser.

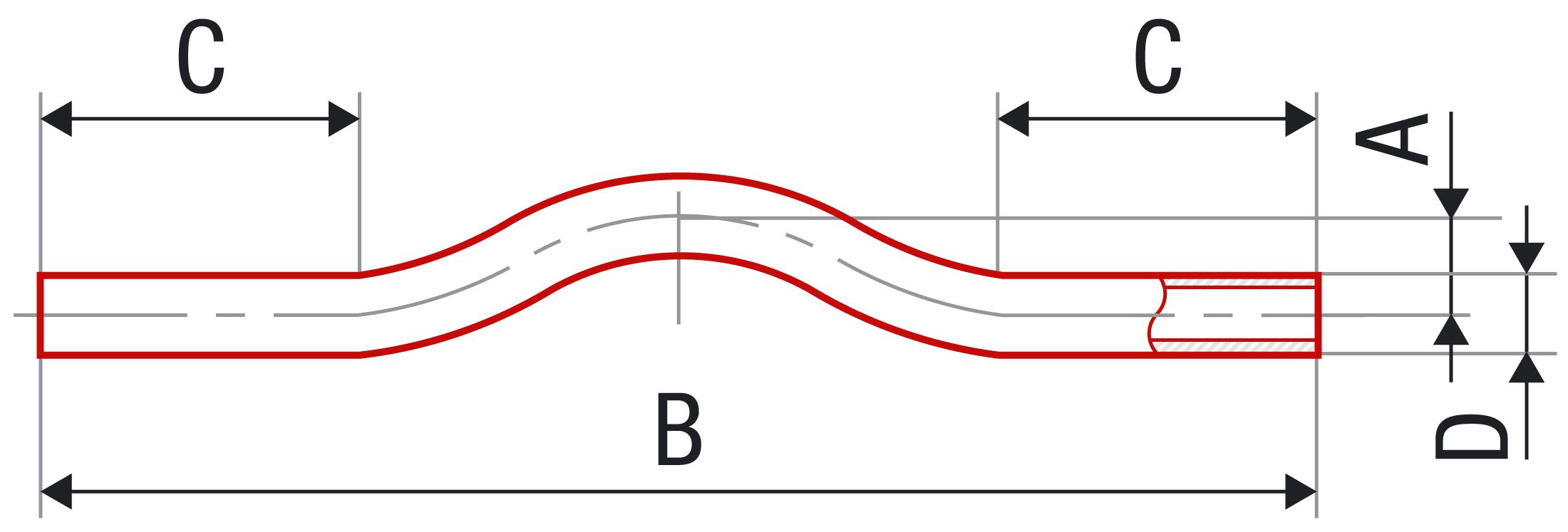

						#	#	D [mm]	A [mm]	B [mm]	C [mm]
16	pcs	180	1	0.03	0.24	AA233016000	BA233016000	16	35	380	100
20	pcs	100	1	0.07	0.32	AA233020000	BA233020000	20	42	400	110
25	pcs	50	1	0.09	0.64	AA233025000	BA233025000	25	30	400	100
32	pcs	35	1	0.16	0.80	AA233032000	BA233032000	32	35	400	90
40	pcs	20	1	0.33	1.60	AA233040000	BA233040000	40	35	400	90

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Have you ever had problems when slipping the rolled-up end of the heated pipe onto a fitting? Try using a common knife or special preparation to slide the outer rim of the pipe end intended for heating at an angle of 30 – 45 degrees, particularly at bigger diameters, i.e. from 40 mm up. You will prevent the material from ruffling.
Abbreviations
