FV PPR wall elbow with holder

System:	FV AQUA
Material:
Standard:	ČSN EN 15874, DIN 8077, DIN 8078
Details:	The fitting is suitable for fitting mixer taps. Robust double wall elbow with fixed spacing R = 150 mm.

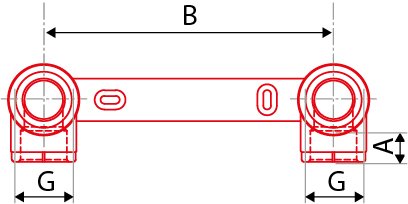

						#	#	D [mm] outer Ø of the pipe	Min. depth of insertion into the throat	A1 [mm]	A2 [mm]	B [mm]	B1 [mm]	Bstr. [mm]	C [mm]	C1 [mm]	C2 [mm]	G
20 × 1/2"	pcs	36	1	0.165	0.518	AA249020012	BM249020012	20	14.5	32	51.5	189	19.5	80	50	14	36	1/2"
25 × 1/2"	pcs	36	1	0.179	0.518	AA249025012	BM249025012	25	16	32	51.5	189	19.5	80	53.5	17.5	36	1/2"

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Teflon band or special sealing putty containing Teflon. It is suffi cient to apply it on the first two or three threads. Never use classical hemp – after it absorbs water, the thread may crack due to the inner pressure.
