FV PP-R reducing sleeve with plastic male thread

System:	FV AQUA
Material:	PP-R
Standard:	ČSN EN ISO 15874
Details:	A fitting for temporary threaded connection.

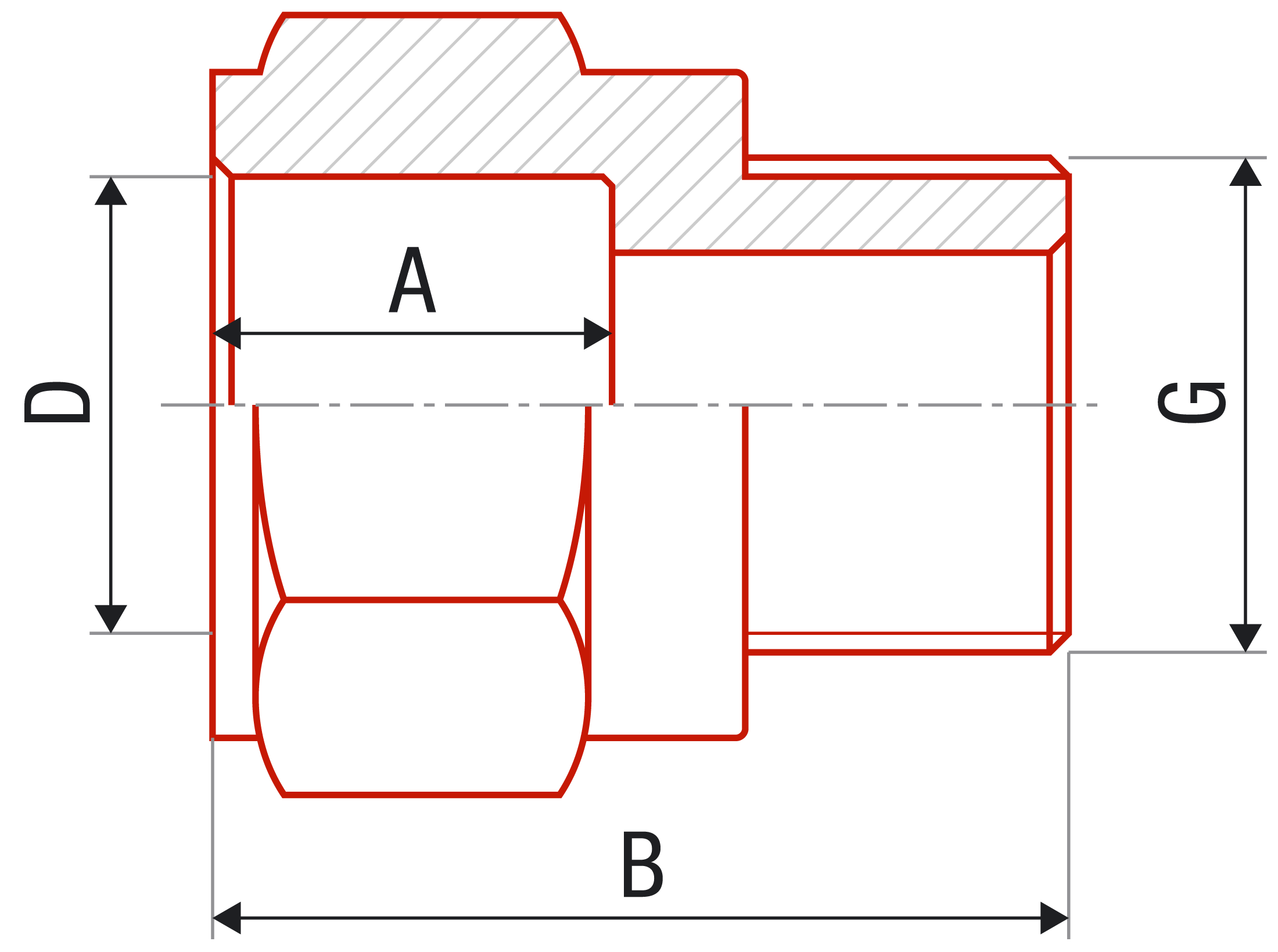

						#	#	D [mm]	D4 [mm]	A [mm]	B [mm]	G
20 × 1/2"	pcs	300	20	0.01	0.03	AA213020012	BA213020012	20	30.8	14.5	34.5	1/2"
20 × 3/4"	pcs	100	20	0.02	0.04	AA213020034	BA213020034	20	36.4	14.5	44.5	3/4"
25 × 3/4"	pcs	100	20	0.02	0.05	AA213025034	BA213025034	25	40.5	16.0	45.0	3/4"
32 × 1"	pcs	100	10	0.03	0.10	AA213032001	BA213032001	32	50	18.1	55.0	1"
40 × 5/4"	pcs	60	10	0.07	0.20	AA213040054	BA213040054	40	68.2	20.5	56.8	5/4"
50 × 6/4"	pcs	40	10	0.12	0.35	AA213050064	BA213050064	50	84.8	23.5	65.0	6/4"
63 × 2"	pcs	20	2	0.22	0.50	AA213063002	BA213063002	63	107	27.4	75.0	2"

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Have you ever had problems when slipping the rolled-up end of the heated pipe onto a fitting? Try using a common knife or special preparation to slide the outer rim of the pipe end intended for heating at an angle of 30 – 45 degrees, particularly at bigger diameters, i.e. from 40 mm up. You will prevent the material from ruffling.
