| System: | FV AQUA |
| Material: | PPR |
| Standard: | ČSN EN ISO 15874, DIN 8077, DIN 8078 |
| Details: | A simple, reliable fitting for dimension change of pipeline. |
- Search term must have more than 2 characters.
FV PPR reduction internal / external
Drinking water
Heating, cooling
Pools
Chemical industry
Shipbuilding
Infrastructure
Industrial cooling
Domestic water
Geothermal

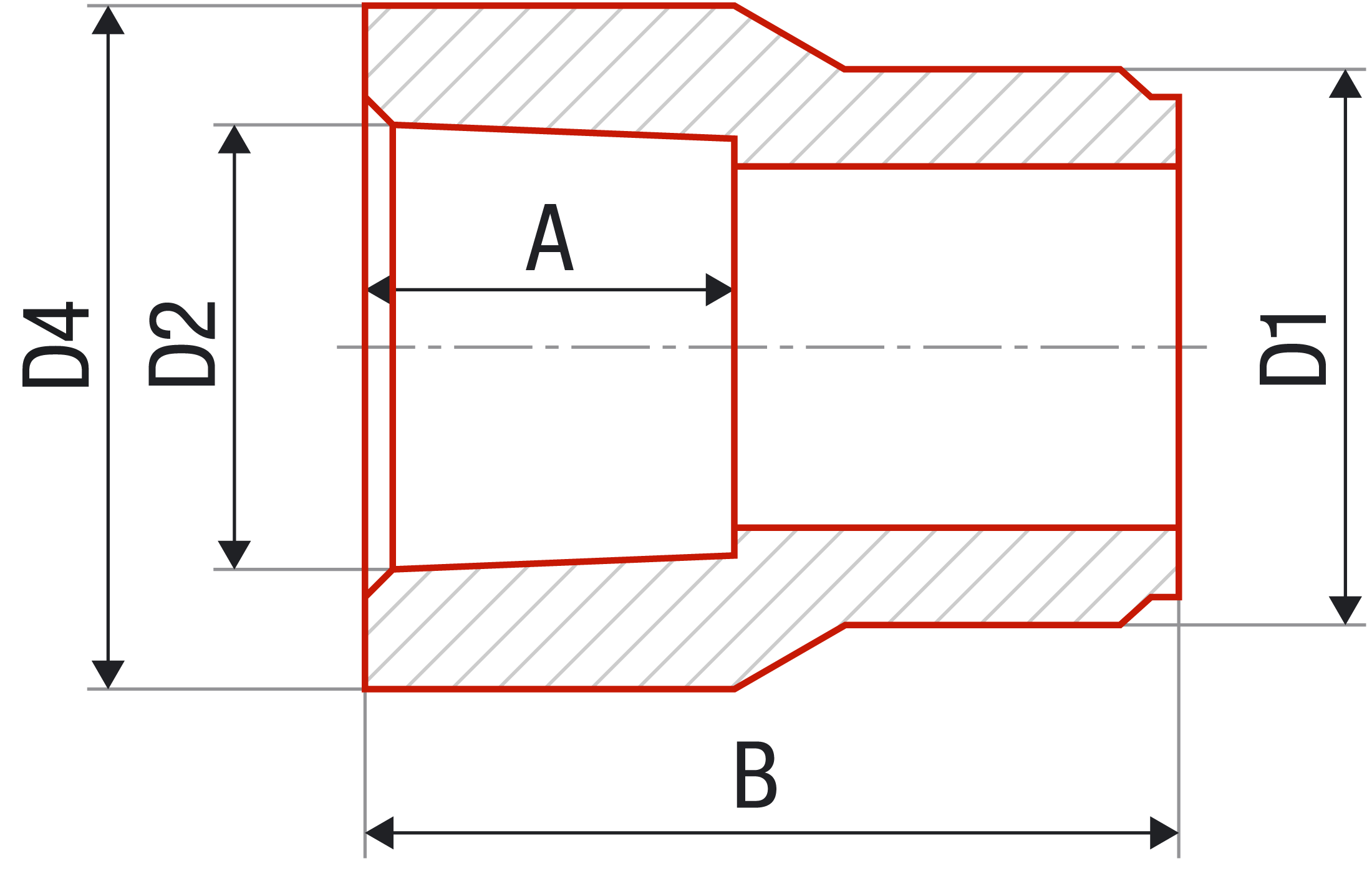

| Dimension | Unit | Large package | Small package | Weight [kg/pcs] | Volume [dm3/pcs] | Catalog number grey | Catalog number green | D1 [mm] | D2 [mm] | D4 [mm] | A [mm] | B [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 x 16 | pcs | 400 | 50 | 0,01 | 0,02 | AA210020016 | BA210020016 | 20 | 16 | 24,0 | 13,3 | 28,4 |
| 25 x 16 | pcs | 300 | 50 | 0,01 | 0,03 | AA210025016 | BA210025016 | 25 | 16 | 30,1 | 13,3 | 31,8 |
| 25 x 20 | pcs | 400 | 50 | 0,01 | 0,05 | AA210025020 | BA210025020 | 25 | 20 | 30,1 | 14,5 | 34,2 |
| 32 x 20 | pcs | 300 | 10 | 0,03 | 0,13 | AA210032020 | BA210032020 | 32 | 20 | 33,8 | 14,5 | 35,4 |
| 32 x 25 | pcs | 200 | 10 | 0,03 | 0,12 | AA210032025 | BA210032025 | 32 | 25 | 36,0 | 16,0 | 38,9 |
| 40 x 20 | pcs | 180 | 10 | 0,02 | 0,13 | AA210040020 | BA210040020 | 40 | 20 | 40,0 | 14,5 | 41,5 |
| 40 x 25 | pcs | 180 | 10 | 0,03 | 0,16 | AA210040025 | BA210040025 | 40 | 25 | 37,9 | 16,0 | 43,5 |
| 40 x 32 | pcs | 120 | 10 | 0,04 | 0,24 | AA210040032 | BA210040032 | 40 | 32 | 47,3 | 18,1 | 50,7 |
| 50 x 32 | pcs | 80 | 10 | 0,05 | 0,27 | AA210050032 | BA210050032 | 50 | 32 | 50,3 | 18,1 | 50,7 |
| 50 x 40 | pcs | 60 | 10 | 0,05 | 0,30 | AA210050040 | BA210050040 | 50 | 40 | 60,5 | 20,5 | 49,8 |
| 63 x 32 | pcs | 60 | 10 | 0,07 | 0,32 | AA210063032 | BA210063032 | 63 | 32 | 48,2 | 18,1 | 43,5 |
| 63 x 40 | pcs | 50 | 10 | 0,08 | 0,40 | AA210063040 | BA210063040 | 63 | 40 | 59,7 | 20,5 | 52,0 |
| 63 x 50 | pcs | 40 | 10 | 0,12 | 0,60 | AA210063050 | BA210063050 | 63 | 50 | 74,3 | 23,5 | 62,0 |
| 75 x 40 | pcs | 20 | 2 | 0,12 | 0,60 | AA210075040 | BA210075040 | 75 | 40 | 93,2 | 20,5 | 64,5 |
| 75 x 50 | pcs | 20 | 5 | 0.12 | 0,80 | AA210075050 | BA210075050 | 75 | 50 | 93,2 | 23,5 | 57,5 |
| 75 x 63 | pcs | 24 | 2 | 0,21 | 1,37 | AA210075063 | BA210075063 | 75 | 63 | 93,2 | 27,4 | 72,2 |
| 90 x 63 | pcs | 25 | 1 | 0,24 | 0,98 | AA210090063 | BA210090063 | 90 | 63 | 94,8 | 27,4 | 70,8 |
| 90 x 75 | pcs | 20 | 1 | 0,27 | 2,40 | AA210090075 | BA210090075 | 90 | 75 | 106,0 | 31,0 | 73,2 |
| 110 x 75 | pcs | 10 | 1 | 0,30 | 1,32 | AA210110075 | BA210110075 | 110 | 75 | 125,8 | 30,0 | 64,0 |
| 110 x 90 | pcs | 9 | 1 | 0,50 | 2,80 | AA210110090 | BA210110090 | 110 | 90 | 125,8 | 35,5 | 91,7 |
| 125 x 110 | pcs | 3 | 1 | BA210125110 | 125 | 110 | 134,6 | 85,0 | 225 |
*1 White pipes and fittings are only to order.
-
Price list We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
-
Tips for plumbers
Have you ever had problems when slipping the rolled-up end of the heated pipe onto a fitting? Try using a common knife or special preparation to slide the outer rim of the pipe end intended for heating at an angle of 30 – 45 degrees, particularly at bigger diameters, i.e. from 40 mm up. You will prevent the material from ruffling.
-
