| System: | FV AQUA |
| Material: | PPR |
| Standard: | ČSN EN ISO 15874, DIN 8077, DIN 8078 |
| Details: | For protection against mechanic impurities, non-pressure fitting. |
Search term must have more than 2 characters.
FV PPR pressure plug short

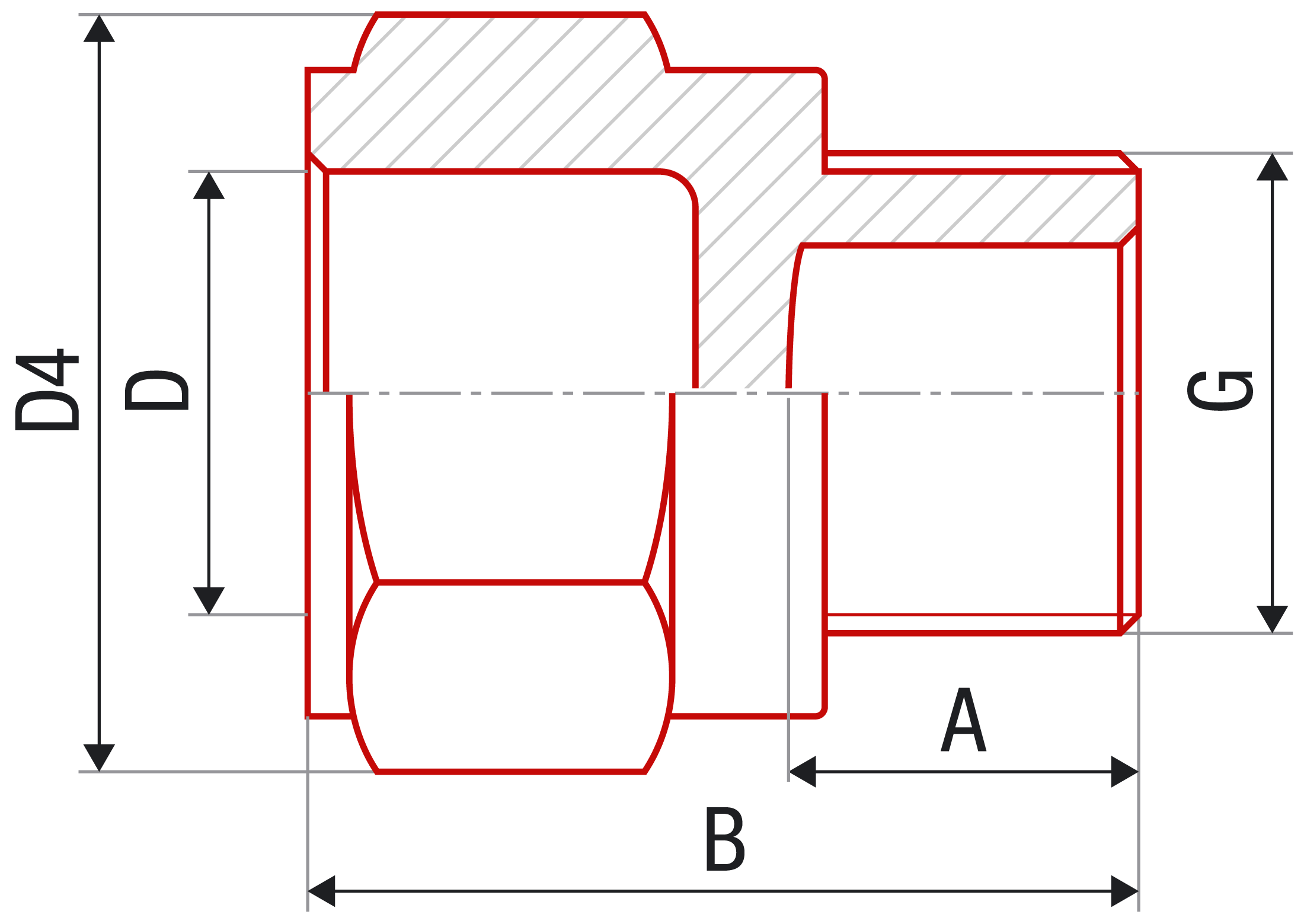

| Dimension | Unit | Large package | Small package | Weight [kg/pcs] | Volume [dm3/pcs] | Catalog number | Catalog number green | Catalog number white | D [mm] | D4 [mm] | A [mm] | B [mmm] | G [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | pcs | 400 | 50 | 0,01 | 0,04 | AA253000000 | BA253000000 | WA253000000 | 20 | 30,8 | 14,5 | 34,5 | 1/2" |
-
Tips for plumbers Have you ever had problems when slipping the rolled-up end of the heated pipe onto a fitting? Try using a common knife or special preparation to slide the outer rim of the pipe end intended for heating at an angle of 30 – 45 degrees, particularly at bigger diameters, i.e. from 40 mm up. You will prevent the material from ruffling.
-
