| System: | FV AQUA |
| Material: | |
| Standard: | – |
| Details: | Fitting suitable for fitting water mixer taps. Adjustable for exact spacing R = 100, 113, 137 and 150 mm. |
- Search term must have more than 2 characters.

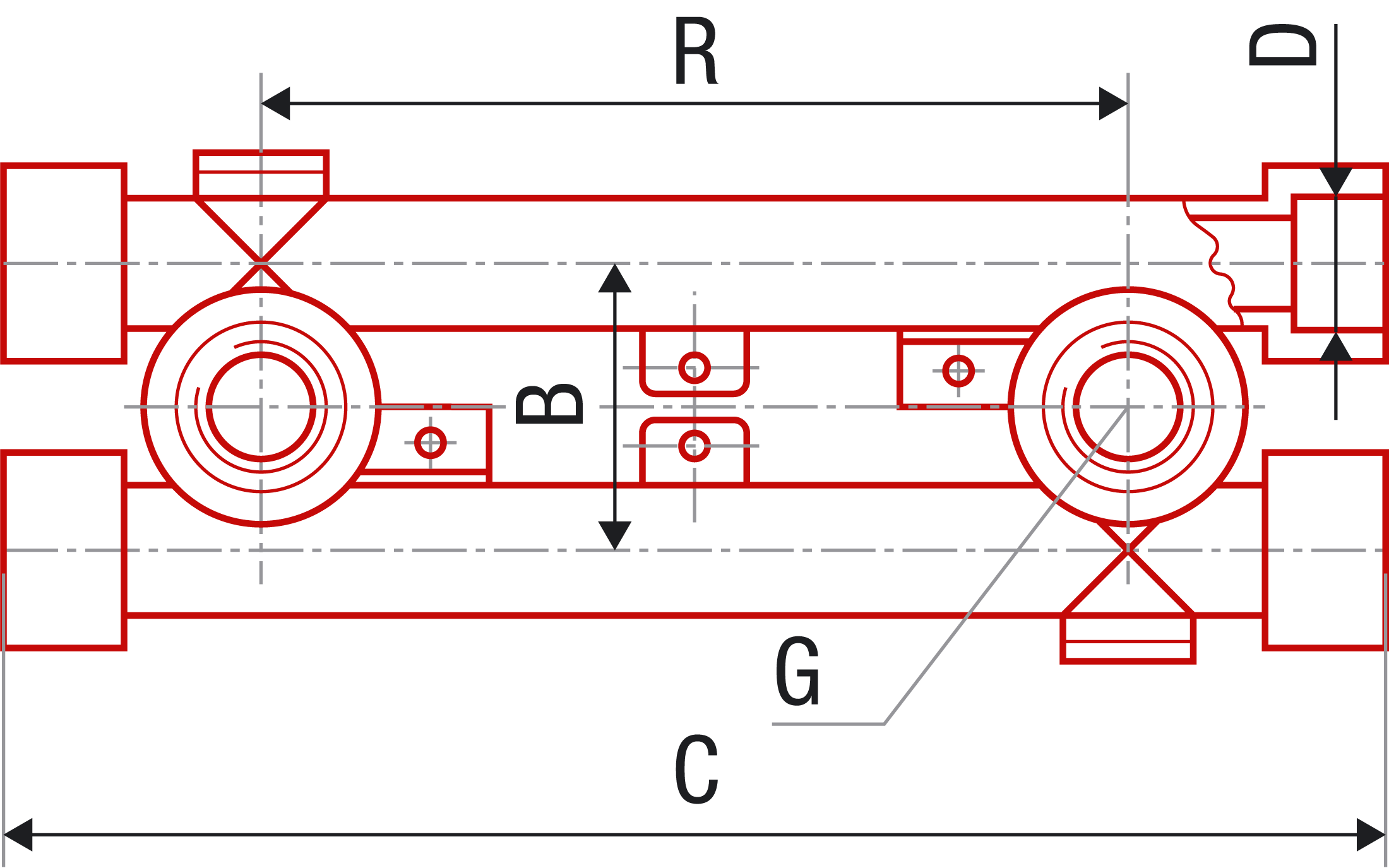

FV PPR wall mounting group with tap connectors
 |  |  |  |  |  | #  | #  | D [mm] | A [mm] | B [mm] | C [mm] | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 × 20 × 1/2" | pcs | 15 | 1 | 0.20 | 1.37 | AA221020012 | BM221020012 | 20 | 14.5 | 46 | 222 | 1/2" |
| 2 × 25 × 1/2" | pcs | 10 | 1 | 0.31 | 1.32 | AA221025012 1) | BA221025012 1) | 25 | 16.0 | 51 | 230 | 1/2" |
1) Set pitch 100/135/150 mm, need to be balance with an eccentric tray.
-
Price list We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
-
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Teflon band or special sealing putty containing Teflon. It is suffi cient to apply it on the first two or three threads. Never use classical hemp – after it absorbs water, the thread may crack due to the inner pressure.
-
