| System: | FV AQUA |
| Material: | PPR - brass |
| Standard: | ČSN EN ISO 15874, DIN 8077, DIN 8078 |
| Details: | Transition fitting from plastic part to metal part of pipeline, for additional branches. |
Search term must have more than 2 characters.
FV PPR weld in saddle with metal female thread
Drinking water
Heating, cooling
Pools
Shipbuilding
Industrial cooling
Domestic water
Geothermal

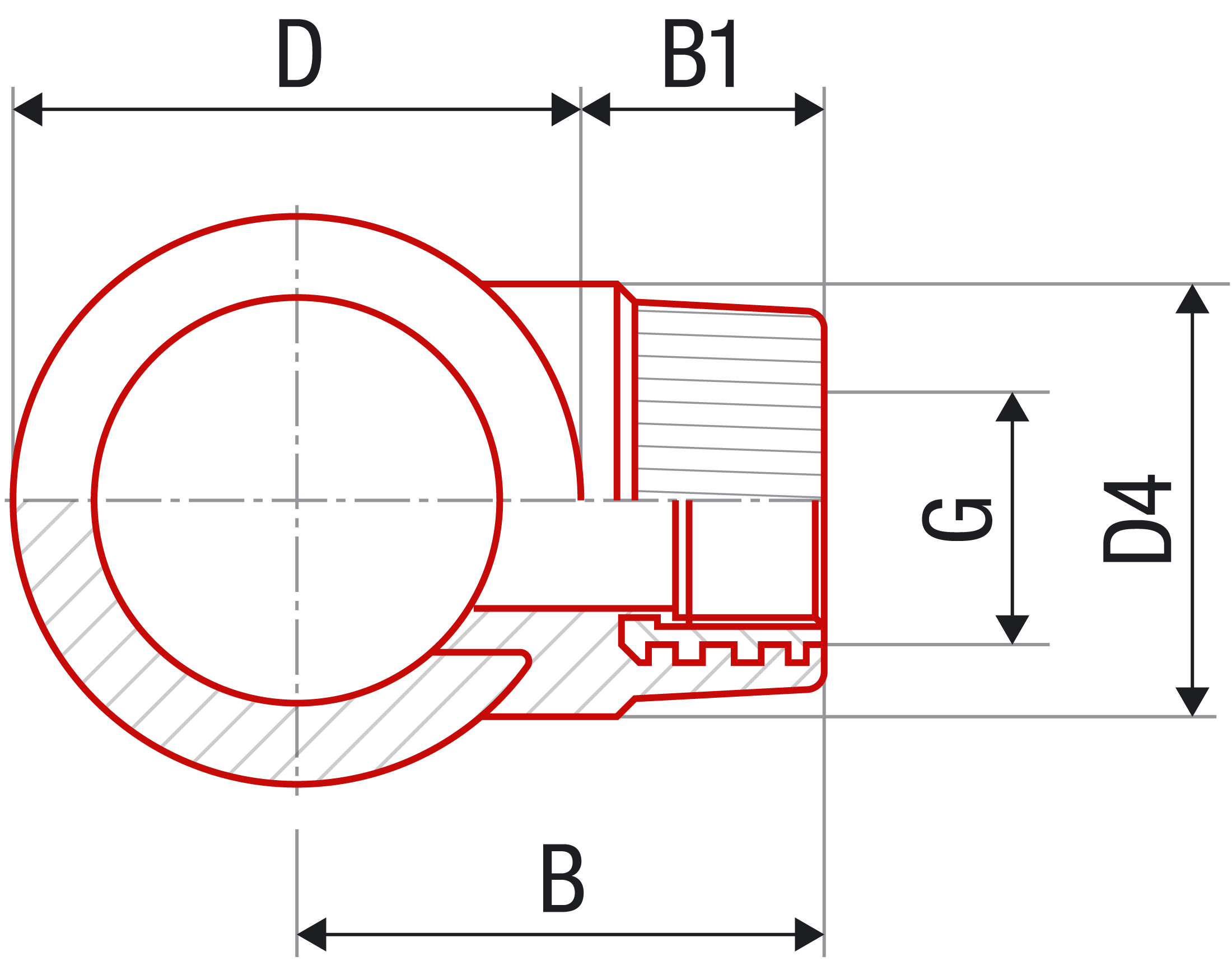

| Dimension | Unit | Large package | Small package | Weight [kg/pcs] | Volume [dm3/pcs] | Catalog number | Catalog number green | Catalog number white *1 | D [mm] | D1 [mm] | B [mm] | B1 [mm] | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 63 x 3/4" | ks | 120 | 10 | 0,091 | 0,17 | AA247063032 | BM247063032 | WA247063032 | 63 | 32 | 58,5 | 27 | 3/4" |
| 75 x 3/4" | ks | 120 | 10 | 0,091 | 0,17 | AA247075032 | BM247075032 | WA247075032 | 75 | 32 | 64,5 | 27 | 3/4" |
| 90 x 3/4" | ks | 120 | 10 | 0,090 | 0,17 | AA247090032 | BM247090032 | WA247090032 | 90 | 32 | 72,0 | 27 | 3/4" |
| 125 x 25 x 1/2" | ks | 1 | 1 | 0,058 | 0,03 | BM247125025 | 63 - 125 | 25 | 60,5 - 91,5 | 29 | 1/2" | ||
| 125 x 32 x 3/4" | ks | 1 | 1 | 0,102 | 0,07 | BM247125032 | 63 - 125 | 32 | 66,5 - 97,5 | 35 | 3/4" | ||
| 125 x 40 x 1" | ks | 1 | 1 | 0,194 | 0,12 | BM247125040 | 75 - 125 | 40 | 75,5 -100,5 | 38 | 1" | ||
| 125 x 40 x 5/4" | ks | 1 | 1 | 0,194 | 0,12 | BM247125041 | 75 - 125 | 40 | 75,5 - 100,5 | 38 | 1 1/4" | ||
| 125 x 50 x 5/4" | ks | 1 | 1 | 0,240 | 0,15 | BM247125050 | 90 - 125 | 50 | 84 - 101,5 | 39 | 1 1/4" | ||
| 125 x 50 x 6/4" | ks | 1 | 1 | 0,244 | 0,15 | BM247125051 | 90 - 125 | 50 | 84 - 101,5 | 39 | 1 1/2" | ||
| 125 x 63 x 2" | ks | 1 | 1 | 0,490 | ,026 | BM247125063 | 110 - 125 | 63 | 100 - 107,5 | 45 | 2" |
*1 White pipes and fittings are only to order.
-
Price list We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
-
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Tefl on band or special sealing putty containing Tefl on. It is suffi cient to apply it on the fi rst two or three threads. Never use classical hemp – after it absorbs water, the thread may crack due to the inner pressure.
-
